Optical Bonding for Displays: How It Works and When It Makes Sense

a comparison with optical bonding and without it on a display
left: without optical bonding, right: with optical bonding

In optical bonding, the optical components of a display are bonded over their entire surface using a transparent adhesive. Depending on the design, these components may include, for example, the cover lens and the display; additional layers, such as a touch sensor, may also be included. The adhesive eliminates the air gap. This reduces internal reflections and improves the display’s readability in bright ambient light.

For optical bonding, we use our patented MaxVU™ process and VIA bond plus, our proprietary bonding material. Product-specific tools and customizable manufacturing processes allow us to tailor the bonding process to the geometry and components of the respective display assembly.

Optical Bonding at a Glance

Question Short Answer
What does optical bonding do? The air gap is eliminated by an optically transparent bonding layer. This reduces internal reflections.
When is this particularly useful? In high ambient light conditions, under demanding climatic or mechanical stresses, and for displays with unusual geometries.
What methods are available? These include film lamination with OCA as well as liquid systems, which are often referred to as OCR or LOCA.
What determines the quality? Material pairing, geometry, cleanliness, and process control. Quality is assessed according to the agreed-upon quality criteria.

What Advantages Does Optical Bonding Offer in Display Assembly?

Readability in Bright Ambient Light

Optical bonding reduces reflections at the internal interfaces of the display assembly. This increases the perceived contrast, and image content remains more easily recognizable in bright ambient light. For displays in vehicles, machinery, or outdoor systems, this means that information can be perceived more quickly and reliably, even under changing lighting conditions. At the same time, the desired readability does not have to be achieved solely through higher display brightness. The extent of this effect depends on the entire optical stack (the complete layered structure of the display). 1

Condensation in the Air Gap

With optical bonding, the air gap between the bonded components is eliminated. No condensation can form in this completely filled space; nor can particles accumulate there after bonding. For products subject to frequent temperature changes or exposure to moisture, this reduces the risk of fogging and visible contaminants directly in the field of view. As a result, the display remains more consistently readable under changing environmental conditions. However, this does not replace the overall device’s seal or protection rating. 2

Mechanical Bonding

Full-surface bonding connects the bonded layers across the entire surface. An elastic bonding material can absorb deformations and distribute mechanical stresses throughout the composite. For displays that are exposed to vibrations, impacts, or extreme temperature fluctuations during operation, this results in a more integrated front assembly with less relative movement between the bonded layers. This can support the design of robust display modules. Whether the required shock, vibration, or fracture resistance is actually achieved must be verified on the complete display assembly. 3

Reduced Parallax

Parallax refers to the apparent misalignment between a pixel and its position on the front surface when viewing the display at an angle. In an air-gap assembly, both the distance to the image plane and the refraction of light at the glass-air interfaces contribute to this misalignment. Optical bonding eliminates the air gap by using an optically matched bonding layer; this can reduce the perceived distance to the image plane and thus the parallax. This is relevant for touch interfaces because the displayed element and the touch location can align more precisely when viewed at an angle. The physical relationship between the refractive index and interface surfaces is explained in the section “Why Does Optical Bonding Reduce Reflections?”

When Is Optical Bonding Particularly Useful?

Optical bonding becomes particularly relevant when the air gap limits the required display quality—due to reflections in bright ambient light, condensation in the field of view, mechanical requirements, or a specific geometry. These requirements determine which material and process options are even feasible for the specific display design.

For product design, this means that optical bonding should be considered early on if the air gap becomes relevant from an optical, climatic, or mechanical standpoint. For a technical evaluation, the specific display design, the components already in place, and the operating conditions are therefore crucial. Based on this, we can work together to determine which VIA bonding solution is best suited for the project.

Optical bonding: Application on a curved display

Is Your Display Assembly Already Defined?

Find out which optical bonding manufacturing options VIA offers and which project data is required for an initial technical assessment.

Optical Bonding Services

How Is a Bonded Display Constructed?

From the outside in, the structure may consist of a cover lens, a bonding layer, and the display. If a separate touch sensor is located between the cover lens and the display, additional bonding layers may be required, depending on the design. In on-cell solutions, the touch sensor technology sits directly on or attached to the display panel; in in-cell solutions, the touch function is integrated within the display cell. In both cases, a separate touch sensor layer in the outer stack may be omitted. The exact layer structure depends on the specific display technology. 4

The cover lens forms the outer protective surface. The bonding layer optically and mechanically connects the designated components.

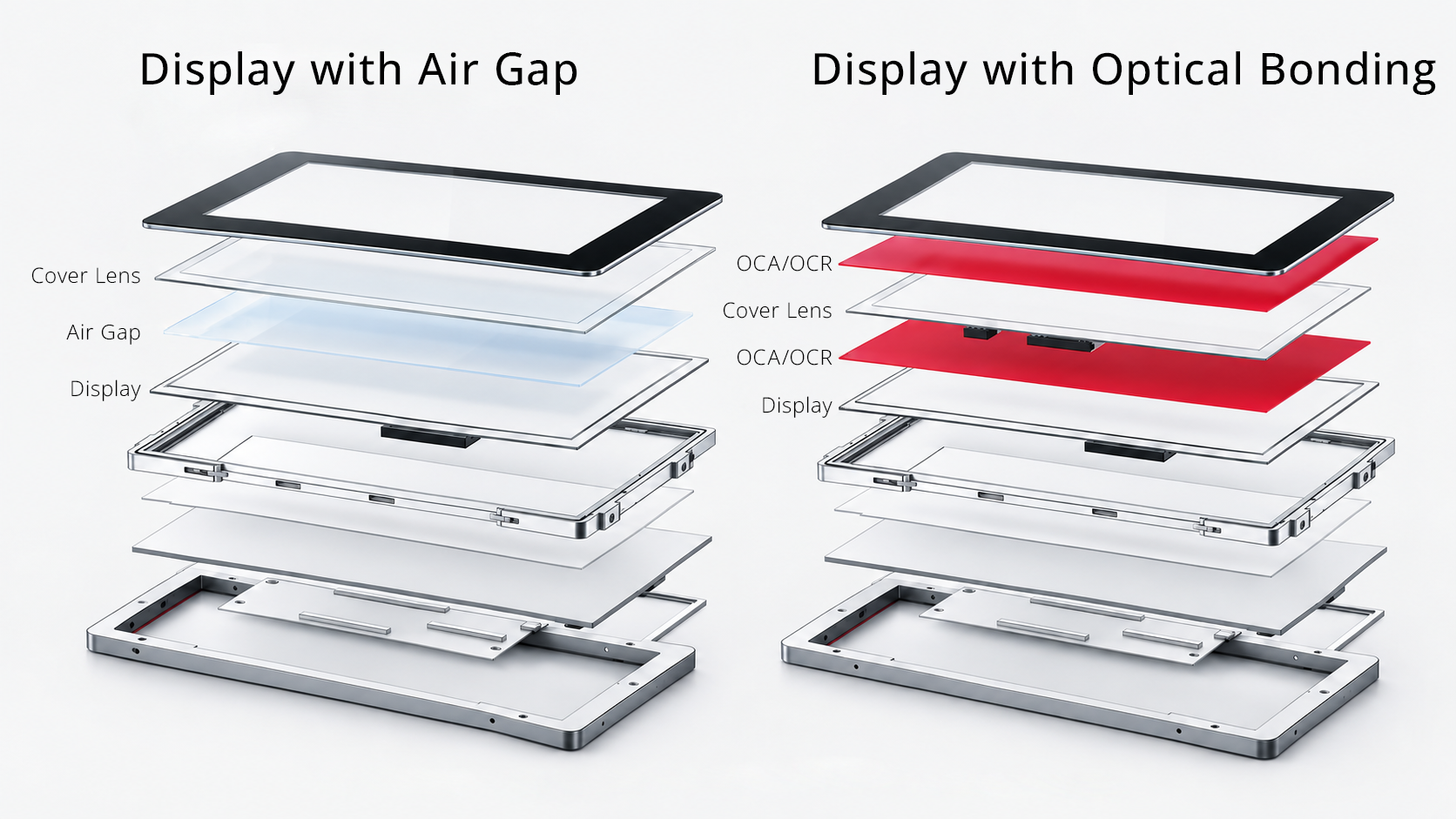

VIA Optronics Comparison: Display Construction with an Air Gap and with Optical Bonding

Why Does Optical Bonding Reduce Reflections?

At every material interface, a portion of the incident light is reflected. The extent of this reflection depends, among other factors, on the refractive index of the materials—a parameter that describes how light propagates through a material. Air has a refractive index of approximately 1.0, while glass and many optical polymers are closer to 1.5.

At an idealized air-glass interface, approximately 4 percent of the light is reflected when it strikes perpendicularly. Actual display assemblies may differ from this. Nevertheless, the value clearly illustrates why an air gap is optically significant. 6

A bonding layer with a suitably matched refractive index reduces the discontinuity between the materials. As a result, less ambient light is reflected back within the display assembly, and the perceived contrast increases—especially in bright ambient light.

How Do Optical Bonding, Display Brightness, and Anti-Reflective Coatings Work Together?

These measures take effect at different stages: Optical bonding reduces internal reflections, anti-reflective (AR) coatings minimize specular surface reflections, and anti-glare (AG) surfaces scatter directional reflections. Display brightness determines how much light the display itself emits.

For the design, lighting conditions, viewing angles, display brightness, the front surface, and the complete optical stack are considered together.

Comparison of an industrial display with an air gap and with optical bonding: stronger reflections on the left, higher contrast and improved readability on the right.
AI-generated visualization

Processes and Materials: Properly Classifying OCA, OCR, LOCA, and Silicone

When selecting materials, the form of delivery and the material chemistry must be considered separately. OCA generally refers to an optically clear adhesive film. OCR and LOCA stand for liquid-applied optically clear systems. Silicone, acrylate, or epoxy, on the other hand, describe the chemistry of the adhesive.

Term What does this mean? Typical Selection Questions
OCA Optically Clear Adhesive: a transparent film adhesive with a defined thickness. Does the available thickness match the geometry? What are the heights of the printed steps? What pressure and temperature are permissible during lamination?
OCR Optically Clear Resin: a liquid, optically clear resin or adhesive system. How should it be dispensed? How is the bonding area defined? What curing process is required?
LOCA Liquid Optically Clear Adhesive: a liquid, optically clear adhesive; often light-curing. Are there any shadowed areas? How are flow behavior, curing, and overflow controlled?
Silicone Material chemistry; can form the basis of a liquid optical bonding material. How do elasticity, aging, adhesion, optical properties, and temperature behavior align with the application?

When Is OCA a Good Choice?

OCA is suitable when surfaces and steps can be covered with a film of appropriate thickness and the lamination process is compatible with the components. The appropriate variant depends on geometry, printing steps, component tolerances, adhesion, and the permissible lamination conditions.

When Are Liquid Bonding Materials Appropriate?

Liquid systems offer more flexibility in terms of geometry and bonding distance. However, the dispensing volume, flow behavior, limitation of the bonding area, and curing must be controlled. For sensitive displays, the mechanical stress during joining also plays a role.

Material compatibility is also crucial. With plastic substrates such as PC (polycarbonate) or PMMA (polymethyl methacrylate, often referred to as acrylic glass), outgassing—that is, the release of volatile components—can be a factor. In unfavorable material combinations, this can promote bubbling or delamination. Therefore, compatibility must be evaluated on the actual substrate.

Which Material Properties Are Critical?

Transparency alone is not enough. A bonding material must adhere to the intended surfaces and visually match the stack. Equally relevant are the refractive index, elasticity, aging and temperature behavior, the thickness of the bonding layer (bond line thickness), as well as compatibility with coatings and, if applicable, touch components. For product design, this means that the choice of material helps determine whether the composite will function optically and mechanically over the long term under the intended operating conditions. In-Depth Look: Material Properties for Optical Bonding

For curved or flexible display assemblies, the mechanical behavior of the bonding layer also becomes important. According to the published VIA specifications, VIA bond plus is intended for bendable, foldable, and curved applications. However, this does not automatically mean that every foldable display assembly can be realized using the same process: the material, layer thickness, bending radius, and overall assembly must be tailored to the specific project.

From Display Assembly to the Bonding Process

Material, geometry, and display assembly determine the specific process sequence. For reliable production, five tasks must be mastered: preparing components, applying the bonding material as specified, aligning and joining components, curing or post-treating the material, and inspecting the finished composite. The MaxVU™ process then demonstrates how these steps are specifically implemented at VIA.

1.
Inspect and Clean Components

Particles, residues, unsuitable surfaces, or geometric deviations may become apparent later or impair adhesion. Therefore, a reliable bonding process begins with the inspection and controlled preparation of the components.

2.
Applying the Bonding Material

With OCA, a custom-cut adhesive film is laminated. With liquid systems, a defined amount of material is dispensed according to a pattern adapted to the geometry. In both cases, the material must reproducibly cover the intended area.

3.
Aligning and Joining Components

The components are aligned with one another within the project-specific tolerances. Depending on the assembly, this includes the cover lens, display, and other layers such as a touch sensor. During joining, inclusions, excess material, and stresses critical to the display must be avoided.

4.
Curing or Post-Treatment

Post-processing depends on the material system. Some adhesives are already cross-linked, while others cure through light, temperature, or a chemical reaction, for example. Vacuum, pressure, or other process steps may be added.

5.
Inspect the Result

The finished composite is inspected for visual defects and functionality and compared against the agreed-upon quality criteria. For touch applications, this includes testing the touch function. Depending on the application, additional environmental, mechanical, or aging tests may follow.

Quality in Optical Bonding: What We Focus On

A good bonding result is evident in a clean viewing area and a stable, reproducible bond. To achieve this, material pairing, cleanliness, geometry, and process control must be tailored to the display assembly and the agreed-upon requirements. In VIA’s manufacturing process, optical and electrical measurements are part of incoming and outgoing quality control. Which additional tests are performed by VIA itself, testing partners, or the customer must be determined on a project-by-project basis.
The necessary process conditions and evaluation criteria are defined on a project-by-project basis.

If an anomaly occurs, it is not just the visible defect pattern that matters. The location, timing, affected interface, and material and process data help narrow down the cause.

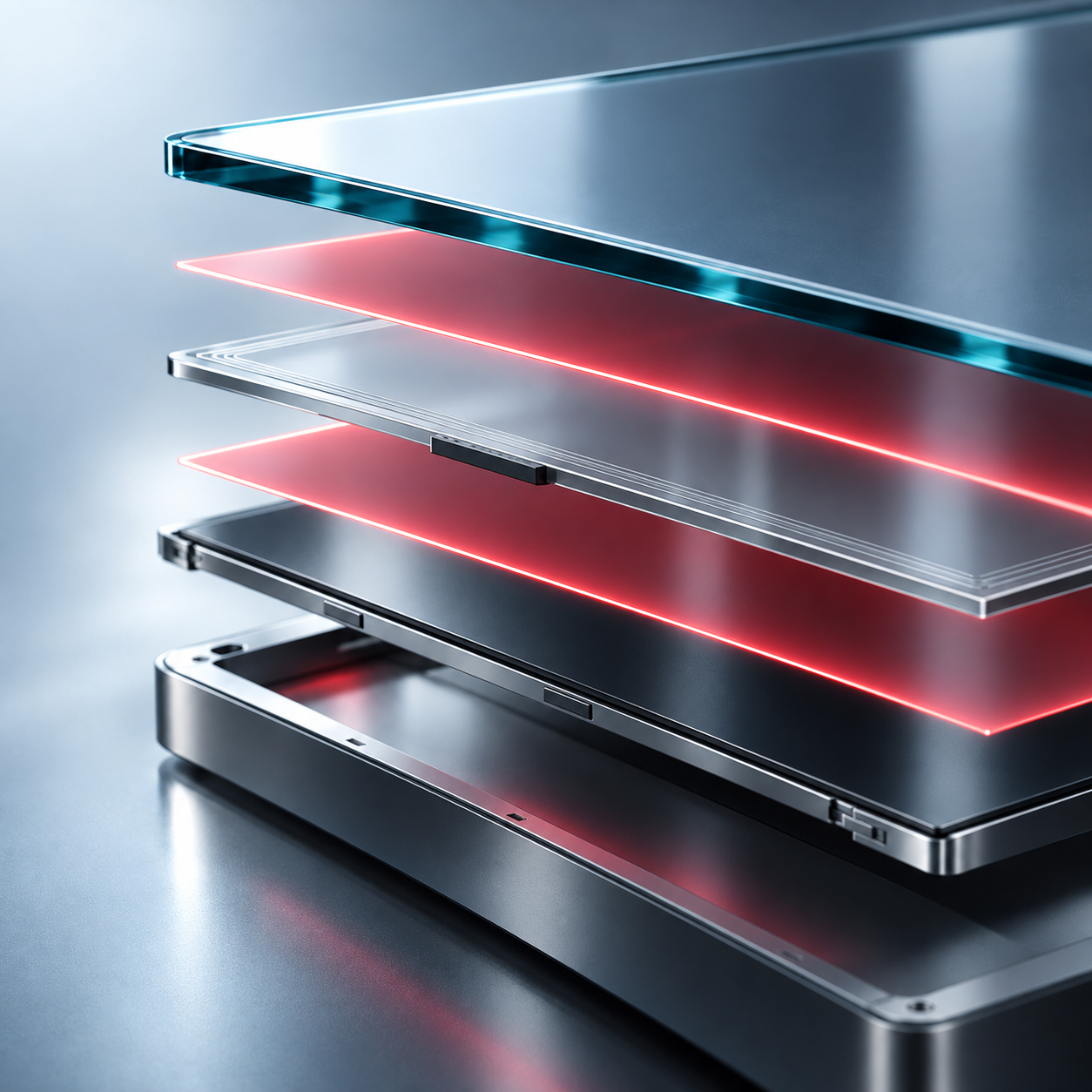

Schematic representation of a multi-layer display structure with transparent and functional layers.

Typical Quality Characteristics and Anomalies

Quality characteristic / Anomaly How can it be identified? Possible influencing factors Evaluation / Quality criterion
Bubbles / Voids Round or irregular unfilled areas. Air ingress, dosing, flow behavior, curing, material outgassing. Evaluate against agreed-upon visual criteria regarding size, number, and position. In case of deviations, compare the location and time of occurrence with process data.
Particle inclusions Spots or fibers in the viewing area. Component, protective film, handling, cleaning, environment. Evaluate against agreed-upon visual criteria; narrow down the location within the layer sequence and the possible route of entry.
Delamination Separation at an interface, often starting at the edge or occurring locally. Surface condition, adhesion, material pairing, climatic or mechanical stress. Evaluate the bond against the agreed-upon requirements; inspect the affected interface as well as its condition before and after loading.
Yellowing Yellowish discoloration of one or more optical layers. Exposure to light and heat, material aging, other optical components. Identify the layer causing the discoloration and evaluate the color change against the agreed-upon aging or operating conditions.
Mura / Brightness Variations Spots or uneven brightness on a homogeneous test pattern. Mechanical stress, display sensitivity, backlight, stress from assembly or installation. Evaluate homogeneity using a defined test pattern; compare the condition before and after bonding or installation.
Deviating bond line thickness The bonding layer deviates locally from the intended geometry. Warpage, component tolerances, alignment, material quantity, process control. Compare the bond line geometry at defined measurement points with target values and tolerances.

How Can Anomalies Be Classified?

Reproducible reference points aid in root cause analysis: photos taken under defined lighting conditions, a uniform test pattern, as well as the position, size, and time of the anomaly. Comparisons made before bonding, after manufacturing, after installation, and after loading are particularly informative.

Shrinkage and Thermal Expansion in the Bond

Some adhesive systems change in volume during curing. At the same time, the bonded materials expand to varying degrees in response to temperature changes. Both factors can generate stresses in the bond; the extent of these stresses depends on the material, layer thickness, geometry, and temperature profile.

How Are Quality Criteria Defined for a Project?

For visual criteria, the test image, display brightness, ambient lighting, viewing distance, and viewing angle are specified. Based on this, the permissible number, size, and position of defects can be agreed upon.

Depending on the application, functional, climatic, shock, vibration, or aging requirements may also apply. The qualification covers the complete assembly and its intended use.

Further Technical Information for Heavy-Duty Applications: Reliability Testing and Qualification · Failure Modes

VIA Technology: MaxVU™ and VIA bond plus Working Together

MaxVU™ is our patented optical bonding process. VIA bond plus is the proprietary, silicone-based two-component material used in this process. MaxVU™ describes the process control; VIA bond plus provides the properties of the bonding layer. Product-specific tools enable the process to be adapted to the respective display design.

  MaxVU™ VIA bond plus
Category Optical bonding process Optical bonding material
Task Apply the material as specified, pre-cure it, and bond the components in a controlled manner. Create an optically transparent and mechanically sound bond between the components.
Technical Core Pre-cured soft layer, lamination onto the display, product-specific tools; pre-curing at room temperature. Proprietary silicone-based two-component system; remains soft and flexible after curing.
Role in the System Controls material application, pre-curing, lamination, and adaptation to the specific display structure. Determines the optical and mechanical properties of the bonding layer.

MaxVU™: Process Flow and Special Features

With MaxVU™, we apply VIA bond plus to the cover lens or—depending on the design—to a touch panel and pre-cure it to form a soft layer. The layer is then laminated to the display. Pre-curing takes place at room temperature; no mechanical bonding pressure is required on the display during lamination. This is particularly relevant for displays that are sensitive to pressure-induced mura effects.

Product-specific tools adapt the process to the geometry and tolerances of the respective assembly. The specific implementation depends on the components and the project requirements.

Optical bonding: silicone application – a look behind the scenes
VIA optronics employees working with VIA bond plus material for optical bonding technology

VIA bond plus: Material Properties

VIA bond plus is our proprietary, silicone-based two-component material for optical bonding. After curing, it remains soft and flexible. The material is intended for bendable, foldable, and curved applications

For a specific application, the material, the thickness of the bonding layer, and the display design are considered together. For curved or foldable applications, this also includes the intended bending radius. Whether a design is suitable must be evaluated based on the components and the requirements of the specific project.

VIA bond plus – Properties at a Glance

Clear and transparent

Non-yellowing

No shrinking (<0,1%)

Reworkable material

No external activators

High temperature range

Nontoxic

Adjustable Hardness

From Product Requirements to an Optically Bonded Display Assembly

Whether and how optical bonding can be implemented for a specific display project depends on the overall assembly and operating conditions. The starting point, therefore, is the components that have already been specified or planned: the display, cover lens, touch sensor (if applicable), and other optically relevant layers.

Equally important are the application requirements. These include, for example, ambient brightness, temperature range, humidity, mechanical stresses, available installation space, and requirements for readability, optics, and service life.

1. Define Requirements and Display Assembly

Which components are to be bonded, and what optical, environmental, and mechanical stresses will the display be exposed to? This determines the constraints for material, geometry, and process control.

2. Narrow Down Technical Options

Based on this, the bonding material, layer thickness, manufacturing process, and required tests for the specific assembly can be narrowed down.

3. Review Implementation with VIA optronics

Once the display assembly and operating conditions are determined, VIA can specifically narrow down the technical implementation.

Manufacturing
Which bonding processes and manufacturing options are suitable for the intended assembly?

Rework
Which components can be reworked and rebonded if necessary?

Project Evaluation
What technical data does VIA need to initially assess feasibility and suitable process options?

On the Optical Bonding Service page, you’ll find the available manufacturing options, information on rework, and the details required for an initial technical evaluation of your display project.

View Optical Bonding Services

Frequently Asked Questions About Optical Bonding

Does Optical Bonding Make a Device Waterproof?

No. Optical bonding alone does not make a device waterproof. However, it helps protect the optical unit from moisture-related damage: The air gap between the bonded components is eliminated, so no condensation can accumulate in this space. The protection rating of the entire device continues to depend on the housing, seals, connectors, and their qualification.
